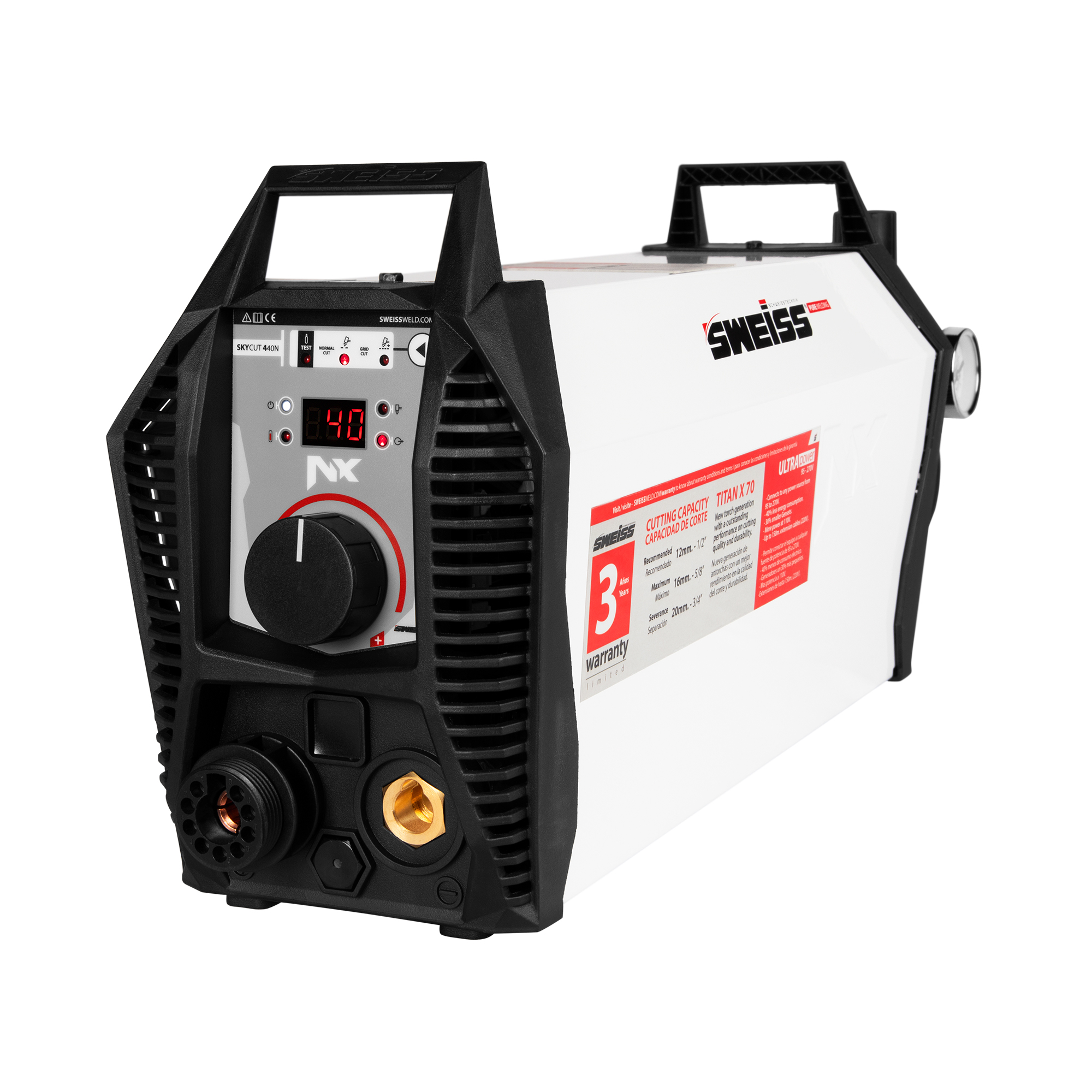

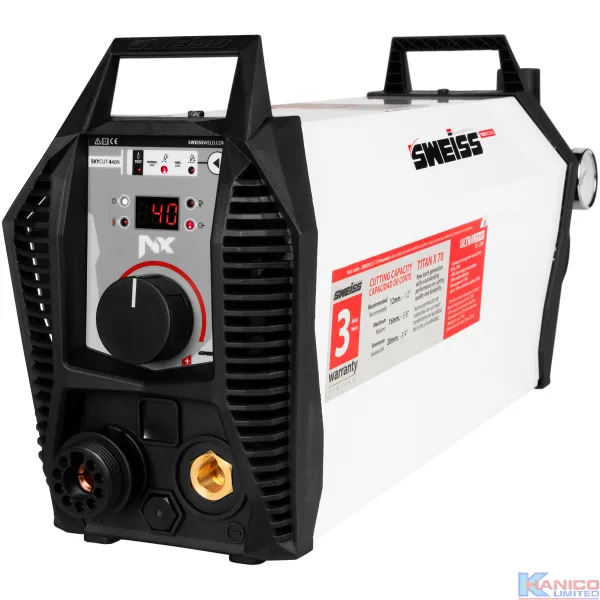

SWEISS PLASMA SKYCUT 440NX (SWC440N)
Sweiss Plasma Skycut 440NX 40 Amps, 3/4”(20mm)
40 Amps plasma cutter up to 20mm (3/4”). SKYCUT 440 NX SWEISS SKYCUT 440 plasma cutting equipment. Powerful and compact, ULTRA POWER Technology (95-270V). Allows cuts up to 20mm (3/4″), 40% and recommended cut (1/2″)
Pilot Arc Ignition, Air test mode, Continuous cutting mode, ON/OFF indicator, Alarm indicator, Led screen Intermittent cutting mode, Torch problems, Cutting mode selection, Torch flame lit, TITAN CUT 70X torch connector, Current adjustment knob, Front grilles for optimized ventilation that allows more internal space for components, Quick connectors 35 – 50.
Description
| Amperage | 110/220V) 20-30Amps / 20-40ª |
| Current type | DC |
| Voltage | No-load 320V |
| Input voltage | 110/220V (1Ph) |
| Frequency | 50/60 Hz |
| Max consumption | 32.6Amps(110V) / 22.8(220V) |
| Ignition | PILOT ARC |
| Weight | 14.1lbs |
| Measurements | 17.44” x 6.06” x 9.56” |
| Insulation | IP/IP23S/F |
| Connection type | 1/2 Ph |
| Torch Model | TITAN CUT 70 X Torch (P1-440) |
| Front/Back Material | Plastic |
| Housing material | Steel |
| Pressure range | 65 – 90 PSI |
| Flow range | 6.5 – 8.5 CFM |
| Recommended generator power | 13 Kw |
| Extension | (220V) Up to 150m, #10 (minimum) AWG gauge |
| CE regulations | EN-60974-1, EN-60974-10 |
| Accessories | Sweiss Electrodes: 219.21.P2-517 Sweiss Contact Tip CutX70: 219.21.P2-511 Sweiss Diffuser: 219.21.P2-518 Sweiss Spacers: 219.21.P2-516 Sweiss Upper Nozzle: 219.21.P2-514 |
Brand
SWEISS
