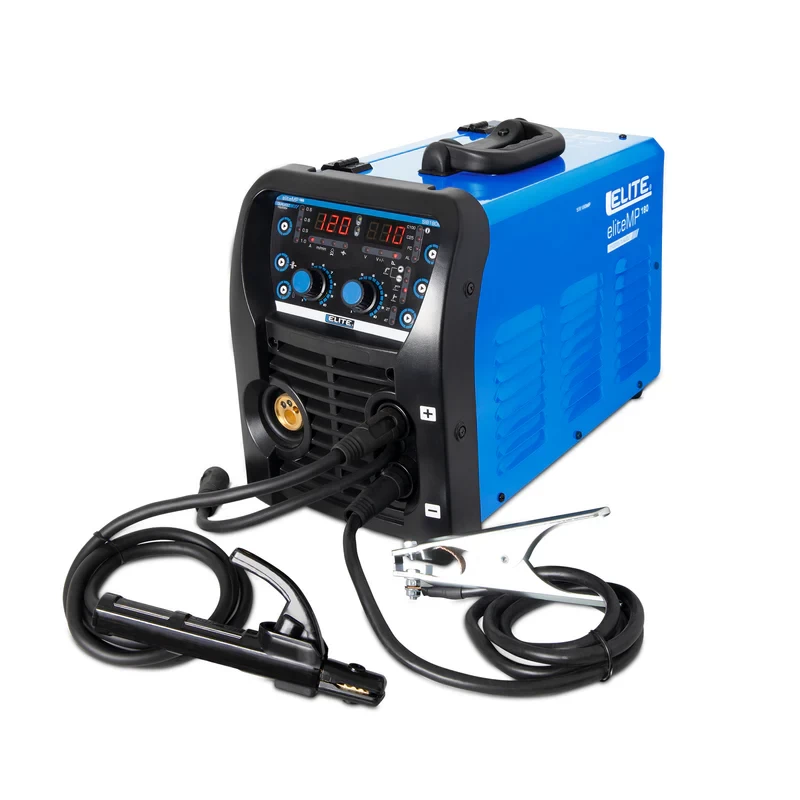

ELITE 110-220V 180A WELDING PLAN (SI8180MP)

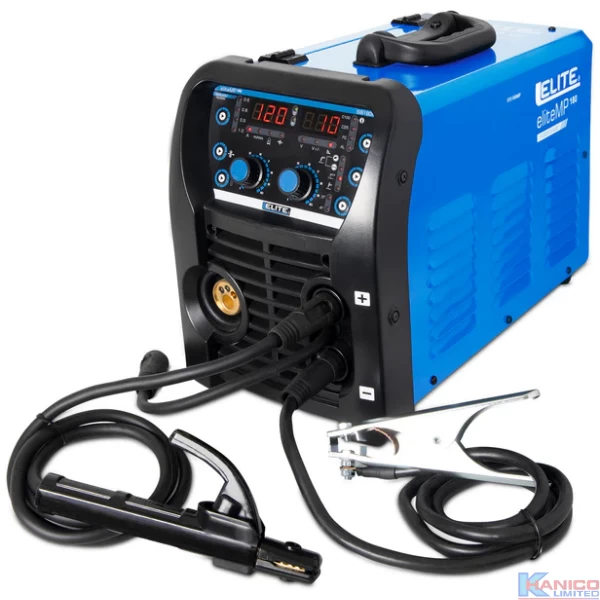

ELITE 110-220V 180A WELDING PLAN (SI8180MP) - Image 2

ELITE 110-220V 180A WELDING PLAN (SI8180MP)

  • Dual Voltage allows the equipment to be connected to a 110V or 220V electrical source.
  • Anti-Stick (MMA Mode) automatically deactivates the output power when the electrode sticks, making detachment easier and extending the equipment’s lifespan.
  • Control panel allows you to view the functionalities of the equipment.
  • Internal connection for spool gun.
  • Synergistic Control with LED display showing current, wire speed, arc force, arc length, and base material gauge.
  • MIG/MAG/Flux cored wire gauge selection button.
  • Display indicators for current, wire speed, inductance/arc length, and base material gauge.
  • Wire gauge selection indicators.
  • LED indicators for temperature protection and machine ignition.
  • LED display for arc voltage and hot start display.
  • Knob with push button for amperage/wire speed adjustment.
  • Knob with push button for arc voltage adjustment and hot start.
Categories: ,
Add to quote

Description

  • Input voltage: 110/220V – 1 phase
  • Frequency: 50/60 Hz
  • No-load voltage: 75V
  • Current range: 10 – 180 Amps
  • Welding processes: MIG, TIG, MMA
  • Duty cycle (at 40°C): 40%
  • Minimum recommended fuse: 30A
  • Output current: DC
  • Dimensions: 28cm (H) x 22cm (W) x 45cm (L)
  • Weight: 11.3 kg
  • Includes: Clamp assembly, Electrode holder clamp assembly, MIG torch assembly

Brand

Elite
